L.E. WILSON

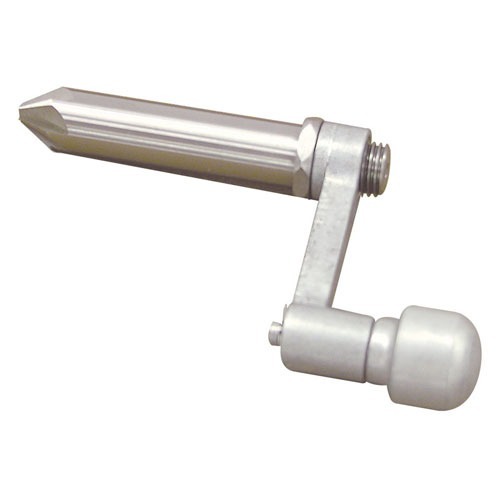

Wilson Case Mouth Deburring Tool - 45 degrees

749003588

Wilson produces two case mouth deburring tools for use in the Wilson Case Trimmer. The deburring tools mount in the cutter bearing and each includes a crank style handle. Cases are held in the trimmer case holders and are held square to the deburring tool. This tool deburs the inside of the case mouth only. The tool is available in the standard 45-degree (WUD45) chamfer and in a 30-degree (WUD30) chamfer for use with VLD bullets. The handle is included, but can be removed to use a Sinclair power adaptor (WSA) so you can power the operation with a drill or rechargeable screwdriver. Not recommended for use on brand new cases.

Mer...

Wilson produserer to verktøy for avgrading av hylsemunning for bruk i Wilson Case Trimmer. Avgradingsverktøyene monteres i kutterlageret, og hver av dem inkluderer et håndtak i sveivstil. Hylsene holdes i trimmerens hylseholdere og holdes vinkelrett mot avgradingsverktøyet. Dette verktøyet fjerner grader på innsiden av hylsemunningen kun. Verktøyet er tilgjengelig i den standard 45-graders (WUD45) fasen og i en 30-graders (WUD30) fase for bruk med VLD-kuler. Håndtaket er inkludert, men kan fjernes for å bruke en Sinclair strømadapter (WSA) slik at du kan drive operasjonen med en drill eller oppladbar skrutrekker. Anbefales ikke for bruk på helt nye hylser.

Mer...

Kundevurderinger for L.E. WILSON CASE TRIMMER UNIFORM DEBURRING TOOL 45 DEGREES

Antall vurderinger: 1
Fra brownells.com: 1
Gjennomsnittsvurdering: 4

DON'T USE THE CASE HOLDERS! (16.02.2011)

Using this cutter as instructed will likely produce off-centered chamfering of the case mouth; too much on one side, little to none on the opposite side. This is because the diameter of the bearing (the part of the trimmer tool that holds the rotating cutter shaft) is usually not equal to the diameter of the shell holder, so the cutter isn't centered on the case mouth. The diameter of my bearing is 0.998". I own seven shell holder's and their diameters are: 0.996", 0.997", 0.997", 0.9975", 0.9975", 0.9975", and 0.998" (this last one actually works). I spoke with a Technician at Wilson and he said they can't guarantee consistent diameters for their shell holders because they start with 1" stock and polish them all down by hand, so the resulting diameters are random. Well that works if you're just length trimming, but if you're chamfering they all have to be exactly the same diameter as the bearing. I went back to using my old Hand-Held Chamfering Tool, and soon realized that the reason it works is because it is allowed to self center. So I returned to the Wilson Trimmer Tool, but this time I didn't use a case holder. I just held the case head against the adjustable screw stop using my index finger and thumb, inserted the cutter head into the case mouth, and allowed the case mouth to self-center on the cutter while I turned the crank handle with my other hand. It worked GREAT! I quickly ran 100 cases through and they all had perfectly centered chamfers, all at exactly the same depths! So I figured I'd post what I learned. Maybe this work-around will work for you too. Also, I had my gun smith blue all the parts, as I read that they rust easily.

Les 1 flere anmeldelser fra brownells.com

599 599 1 NOK

Produktnr.: 749003588
L.E. WILSON CASE TRIMMER UNIFORM DEBURRING TOOL 45 DEGREES
Produsentnr.: UBT-45 Wilson produserer to verktøy for avgrading av hylsemunning for bruk i Wilson Case Trimmer. Avgradingsverktøyene monteres i kutterlageret, og hver av dem inkluderer et håndtak i sveivstil. Hylsene holdes i trimmerens hylseholdere og holdes vinkelrett mot avgradingsverktøyet. Dette verktøyet fjerner grader på innsiden av hylsemunningen kun. Verktøyet er tilgjengelig i den standard 45-graders (WUD45) fasen og i en 30-graders (WUD30) fase for bruk med VLD-kuler. Håndtaket er inkludert, men kan fjernes for å bruke en Sinclair strømadapter (WSA) slik at du kan drive operasjonen med en drill eller oppladbar skrutrekker. Anbefales ikke for bruk på helt nye hylser.

599 NOK 5 kr 599,00 *

Leveringstid ca. 14-21 dager.
5 stk. på lageret i USA

Legg til ønskeliste

Still spørsmål

Detaljer

Legg til ønskeliste

Still spørsmål

Top takeaways

Wilson produserer to avgradingsverktøy for bruk i Wilson Case Trimmer, tilgjengelig i 45-graders og 30-graders faser.
Verktøyet fjerner grader på innsiden av hylsemunningen og inkluderer et avtakbart håndtak i sveivstil.
Håndtaket kan fjernes for bruk med en Sinclair strømadapter for drift med drill eller oppladbar skrutrekker.
