WILLIAMS GUN SIGHT

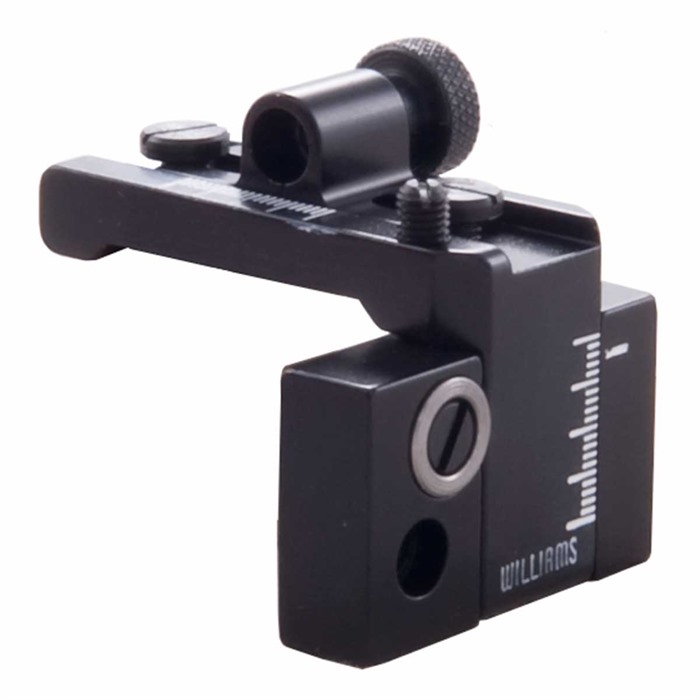

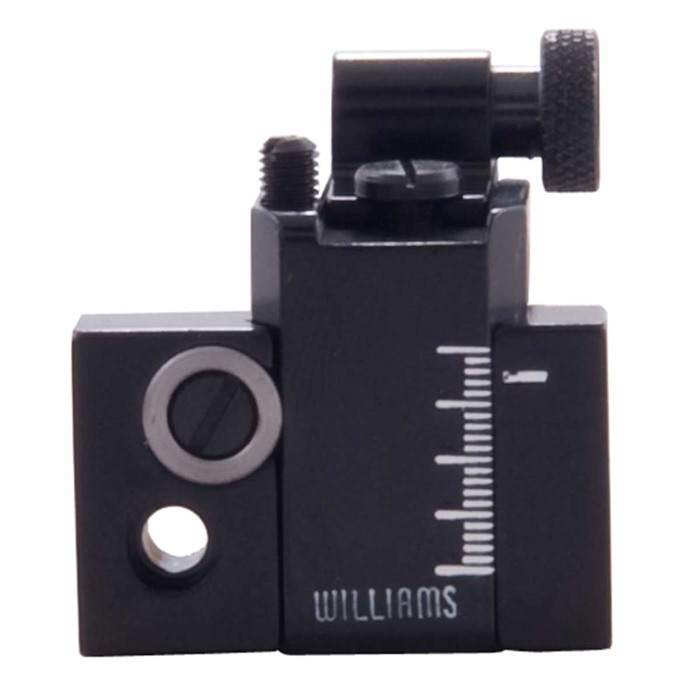

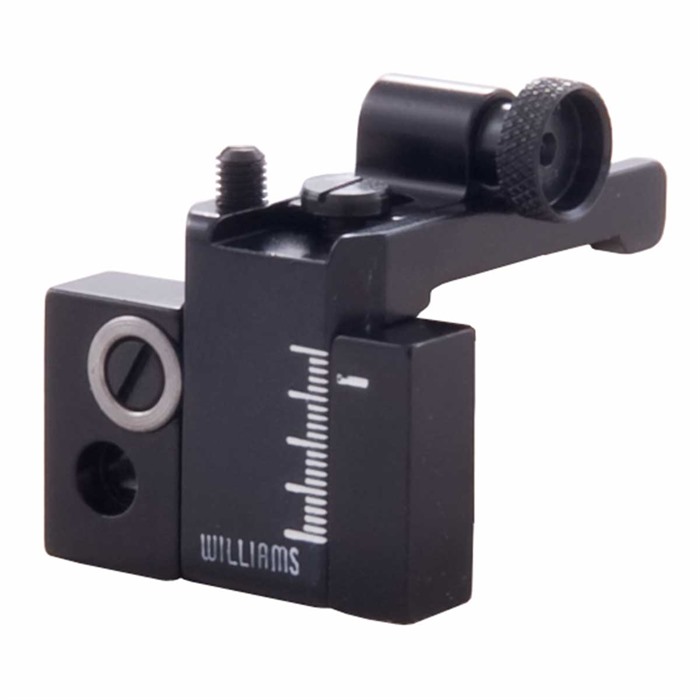

WINCHESTER 36 5D-94/36 ECONOMY RECEIVER REARSIGHT

053506013982 962150094

Same dependable, accurate construction as Foolproof but without micrometer adjustments. Windage and elevation adjustments easily made by loosening screws, moving sight and re-tightening screws. Stop screw provides accurate guide so 5D will return to absolute zero upon detaching and reattaching. Standard hole spacing for easy, secure mounting. 5D-94/36 Model fits Higgins 30/30 Lever; Marin 36 & 336, 94, .44 Mag & 44; Sears 30-30 Lever; Winchester 9422, 64 & 94.

SPECS: Aluminum, black, anodized. Steel screws.

Mer...

Samme pålitelige, nøyaktige konstruksjon som Foolproof, men uten mikrometerjusteringer. Vind- og høydejusteringer kan enkelt gjøres ved å løsne skruer, flytte sikte og stramme skruene igjen. Stoppeskrue gir en nøyaktig veiledning slik at 5D vil returnere til absolutt null ved demontering og gjenmontering. Standard hullavstand for enkel, sikker montering. 5D-94/36-modellen passer til Higgins 30/30 Lever; Marin 36 & 336, 94, .44 Mag & 44; Sears 30-30 Lever; Winchester 9422, 64 & 94.

SPECS: Aluminium, svart, anodisert. Stålskruer.

Mer...

Kundevurderinger for WILLIAMS GUN SIGHT WINCHESTER 36 ADJ 5D-94/36 ECONOMY RECEIVER REARSIGHT BLK

Antall vurderinger: 4
Fra brownells.com: 4
Gjennomsnittsvurdering: 4

Decent Value - Two Cautions (07.05.2010)

Purchased the 5D 94/36 for my 1958 production Model 94. It mounted instantly in the two side-receiver holes on the old rifle.
I did encounter two issues:
1. At the range, I discovered that the sight could not be adjusted low enough in combination with the existing, .290 high original front bead sight. I will have to order a taller front site, likely a Williams Firesight to bring the point of impact down from its present 8-inches high at 100 yds.
2. The screw on the left side which secures the elevation adjustment is too short and with slight over-tightening on my part, stripped the female threads just enough that the screw will no longer start and gain purchase. Thus I cannot tighten to secure elevation. I cured it by substituting a screw about 1/8 longer.

Still, it is an excellent sight for the money if you are prepared to do a little compensating to get set up.

I would buy this product again (26.06.2010)

Hello from Germany! Yes, I own this sight now and I am happy!
And- overtightening the fix screw on the side for low or high is a MISUSE and absolutely not necessary! Only fingertight is enough.
Fits to my beloved Winchester 94 Antique, rockstable, and I now schoot much more better than with the original buckhorn-sight.
The Williams sight is worth all the money!

Installed on Marlin 336 Texan SRC (04.05.2011)

Absolutely foolproof sight. Should have read the previous review though on overtightening the side (elevation) screw. Hard to get the adjustment without "tapping" in needed direction. I'll not overtighten and see what happens. Overall very good value for the price and simple install. Nice thing is all you have to do is change apertures to go from a hunting sight to a target sight.

Very good sight, improved accuracy. (16.07.2012)

Easy to use, looks great,I can t find any faults with this sight.

Les 4 flere anmeldelser fra brownells.com

1199 1199 1 NOK

Produktnr.: 962150094
WILLIAMS GUN SIGHT WINCHESTER 36 ADJ 5D-94/36 ECONOMY RECEIVER REARSIGHT BLK
Produsentnr.: 001398 053506013982 Samme pålitelige, nøyaktige konstruksjon som Foolproof, men uten mikrometerjusteringer. Vind- og høydejusteringer kan enkelt gjøres ved å løsne skruer, flytte sikte og stramme skruene igjen. Stoppeskrue gir en nøyaktig veiledning slik at 5D vil returnere til absolutt null ved demontering og gjenmontering. Standard hullavstand for enkel, sikker montering. 5D-94/36-modellen passer til Higgins 30/30 Lever; Marin 36 & 336, 94, .44 Mag & 44; Sears 30-30 Lever; Winchester 9422, 64 & 94.

1199 NOK 3 kr 1 199,00 *

Leveringstid ca. 14-21 dager.
3 stk. på lageret i USA

Spesifikasjoner: Farge: Black Make: Winchester Modell: 36 Style: Adjustable

Legg til ønskeliste

Still spørsmål

Detaljer

Legg til ønskeliste

Still spørsmål

Top takeaways

5D-94/36-modellen er kompatibel med flere våpen, inkludert Higgins 30/30 Lever, Marin 36 & 336, 94, .44 Mag & 44, Sears 30-30 Lever, Winchester 9422, 64 & 94.
Enkel justering av vind- og høyde ved å løsne og stramme skruer, uten behov for mikrometerjusteringer.
Produsert av aluminium med svart anodisert finish og stålskruer for holdbarhet.

Attributes

Farge: Black Make: Winchester Modell: 36 Style: Adjustable Leveringsvekt: 0,023kg Frakthøyde: 38mm Fraktbredde: 122mm Fraktlengde: 180mm UPC : 053506013982
