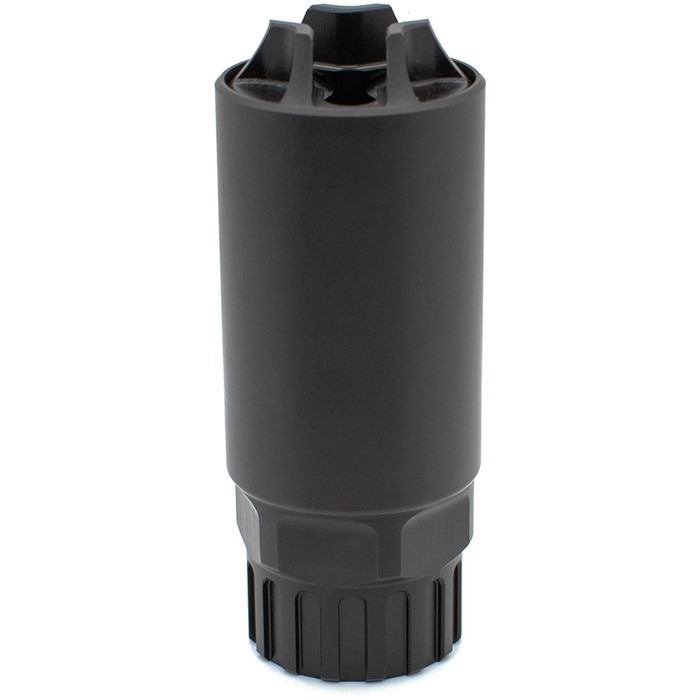

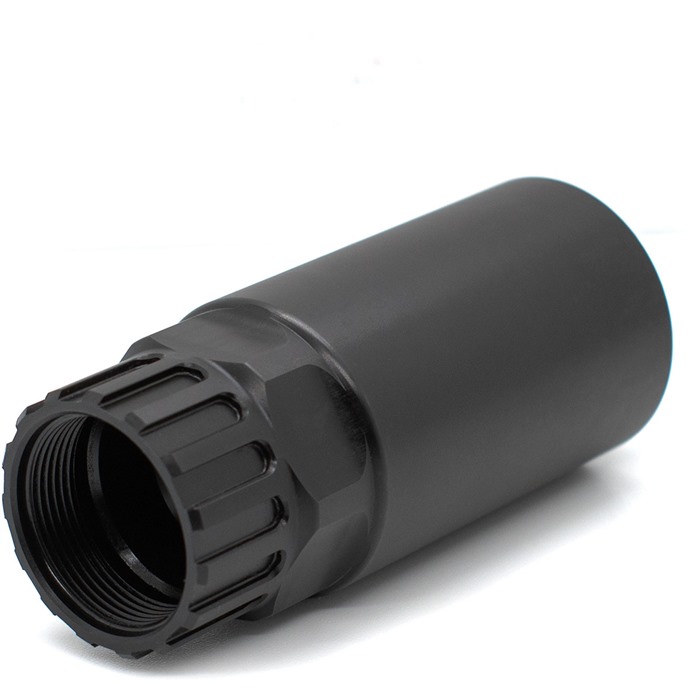

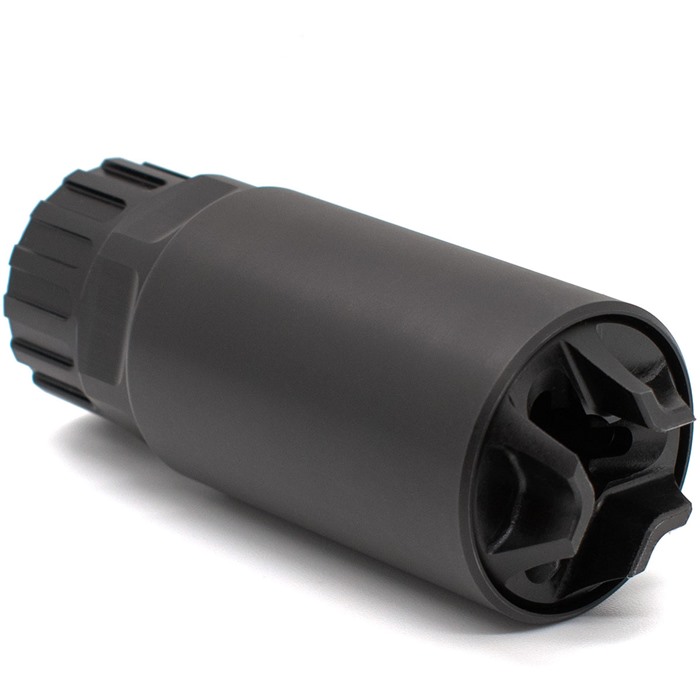

ICARUS BLAST DIFFUSER The Icarus is a blast diffuser designed to work with all Rearden muzzle devices. This blast diffuser will assist in sending blast and concussion down range, as well as serve as a thread protector for your muzzle devices when shooting unsuppressed. This is not a flash hider, and has no flash hiding capabilities. FEATURES: 17-4 PH Compatible with all Rearden muzzle devices, as well as any other Plan B style muzzle device. Nitride OR PVD coating No Atlas needed Weight and Length: Weight: 4.5 oz Length: 3.3″ For use with projectiles .355 (9mm) and less in diameter INSTALLATION These blast diffusers fit over plan B style muzzle devices. Always use an alignment rod to ensure that the entire system is set up correctly. Make sure all surfaces are cleaned and the muzzle device has been torqued and Rockset to the barrel. Torque the muzzle device to approximately 30 ft lbs. Make sure the muzzle device is square against the shoulder. When setting the blast diffuser on the muzzle device, ensure that the threads and tapers are clean. Do not exceeed 10 ft lbs of torque on the Icarus. Ensure alignment. Enjoy. *End cap is removeable, but will come Rockset out of the box.
ICARUS BLAST DIFFUSER Icarus er en blast diffusor designet for å fungere med alle Rearden munningsenheter. Denne blast diffusoren vil hjelpe til med å sende blast og støt nedover banen, samt fungere som en gjengebeskytter for munningsenhetene dine når du skyter uten demper. Dette er ikke en blits skjuler, og har ingen blits skjulende egenskaper. FUNKSJONER: 17-4 PH Kompatibel med alle Rearden munningsenheter, samt enhver annen Plan B stil munningsenhet. Nitride ELLER PVD belegg Ingen Atlas nødvendig Vekt og lengde: Vekt: 4,5 oz Lengde: 3,3″ For bruk med prosjektiler .355 (9mm) og mindre i diameter INSTALLASJON Disse blast diffusorene passer over Plan B stil munningsenheter. Bruk alltid en justeringsstang for å sikre at hele systemet er satt opp riktig. Sørg for at alle overflater er rene og at munningsenheten er strammet og Rockset til løpet. Stram munningsenheten til omtrent 30 ft lbs. Sørg for at munningsenheten er kvadratisk mot skulderen. Når du setter blast diffusoren på munningsenheten, sørg for at gjengene og konene er rene. Ikke overskrid 10 ft lbs med dreiemoment på Icarus. Sørg for justering. Nyt. *Endekappen er avtagbar, men vil komme Rockset ut av esken.
