BROWNELLS
BOLT LAPPING TOOLS

050806008267 080097014

Interchangeable Design Gives Constant Spring Pressure For Precise Mating Of Locking Lug Recesses

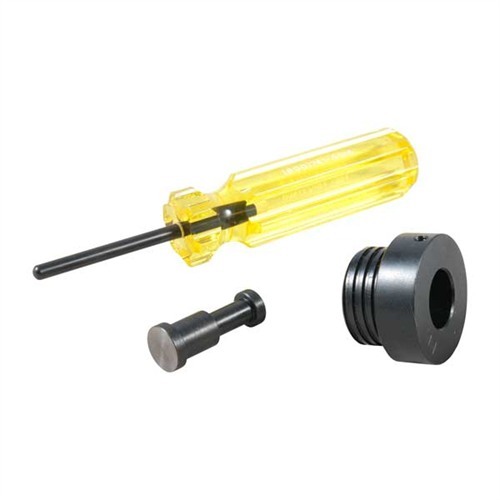

Spring-loaded tool gives constant, straight-back pressure to keep bolt lugs square against the receiver while lapping with 600 to 800 grit, silicon carbide abrasive. Provides better results than mere thumb pressure. Interchangeable threaded sleeves fit popular actions listed below.

SPECS: 3¾" (9.5cm) long, ¾ lb. (340 g). M14/M1A Set sleeve includes large diameter plunger and special lapping handle required for these models. Mauser Large sleeve fits large ring Mauser actions. Mauser Small fits small ring Mauser actions. Savage Small sleeve fits Savage actions in all calibers except Rem Ultra Mag (RUM), Rem SA Ultra Mag (RSUM), and Win Short Mag (WSM). Savage Large sleeve fits Savage actions on ly in RUM, RSUM, and WSM calibers. One Gun Set contains bolt tool body, plunger, and correct size sleeve for model listed. M14/M1A One Gun Set contains bolt tool body, large diameter plunger, correct size sleeve, and special sleeve, and special bolt lapping tool unique to M14/M1A/M1 Garand only. Kit contains all tools necessary to lap all models listed in chart. */**Special price, see below.

Mer...

Utskiftbart Design Gir Konstant Fjærtrykk For Presis Paring Av Låseklakk Recesser

Vårfjæret verktøy gir konstant, rett-tilbake trykk for å holde bolte lugger kvadratiske mot mottakeren mens lapping med 600 til 800 grit, silisiumkarbid slipemiddel. Gir bedre resultater enn bare tommeltrykk. Utskiftbare gjengede hylser passer populære mekanismer listet nedenfor.

SPECS: 3¾" (9.5cm) lang, ¾ lb. (340 g). M14/M1A Set hylsen inkluderer stor diameter stempelet og spesielt lappingshåndtak som kreves for disse modellene. Mauser Large hylsen passer store ring Mauser mekanismer. Mauser Small passer små ring Mauser mekanismer. Savage Small hylsen passer Savage mekanismer i alle kalibre unntatt Rem Ultra Mag (RUM), Rem SA Ultra Mag (RSUM), og Win Short Mag (WSM). Savage Large hylsen passer kun Savage mekanismer i RUM, RSUM, og WSM kalibre. One Gun Set inneholder bolteverktøy kropp, stempelet, og korrekt størrelse hylse for modellen som er listet. M14/M1A One Gun Set inneholder bolteverktøy kropp, stor diameter stempelet, korrekt størrelse hylse, og spesiell hylse, og spesielt bolte lappingsverktøy unikt til M14/M1A/M1 Garand kun. Kit inneholder alle verktøy som er nødvendige for å lappe alle modeller listet i diagrammet. */**Spesialpris, se nedenfor.

Mer...

Kundevurderinger for BROWNELLS GARAND THREADED SLEEVE & LAPPING HANDLE

Antall vurderinger: 1
Fra brownells.com: 1
Gjennomsnittsvurdering: 5

Very nice fit of parts. (31.08.2015)

I bought this one-gun kit after trying to use the plunger body from the M14/M1/M1A kit. It did not fit a sleeve I had bought for the Large Ring Mauser. After receiving this kit with it's plunger body I then began trying all the parts one at a time.

Both plunger bodies are 0.5620" and the sleeves are 0.5625 except the M14, it was 0.563. There were little burrs on the plunger body of the M14 kit that made me think it would not fit the different sleeves. All fit well after a little lapping.

I plan on using the bolt lug lapping tool for several rifles I am building. After using the tool I believe I can use it to square the bolt face on a Mauser Large Ring VZ-24. After reaming the sleeve from existing 9/16" to a 5/8" I will press fit a drill bushing that is 5/8 x 3/8 and use the Mason Reamer Burr which has a 3/8" shaft. The Burr has been ground to 0.3740 to 0.3745. It has a buttery slip fit in the Drill Bushing.

Mauser threads are at a 55 deg pitch and not easy to find. Brownells sells the sleeve with the right threads for the '98 and the face truing Burrs. All you need is the drill bushing, the undersized drill, and the reamer to make the altered sleeve to be able to Lapp the lugs with the original unaltered sleeve, and true the face of your bolt with your altered sleeve. After, of course, you check that the receivers threads are true to the action. This can be checked with a mandrel which Brownells has too. This can be done for any rifle that Brownells has a sleeve for. Happy Gunsmithing, JL.

Les 1 flere anmeldelser fra brownells.com

419 4399 17 NOK

Produktnr.: 080097014
BROWNELLS GARAND THREADED SLEEVE & LAPPING HANDLE 050806008267 Vårfjæret verktøy gir konstant, rett-tilbake trykk for å holde bolte lugger kvadratiske mot mottakeren mens lapping med 600 til 800 grit, silisiumkarbid slipemiddel. Gir bedre resultater enn bare tommeltrykk. Utskiftbare gjengede hylser passer populære mekanismer listet nedenfor.

949 NOK 3 kr 949,00 *

Leveringstid ca. 14-21 dager.
3 stk. på lageret i USA

Spesifikasjoner: Make: Springfield Modell: M14, M1A
