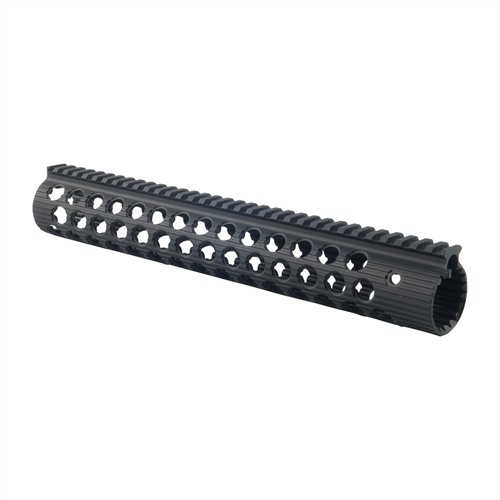

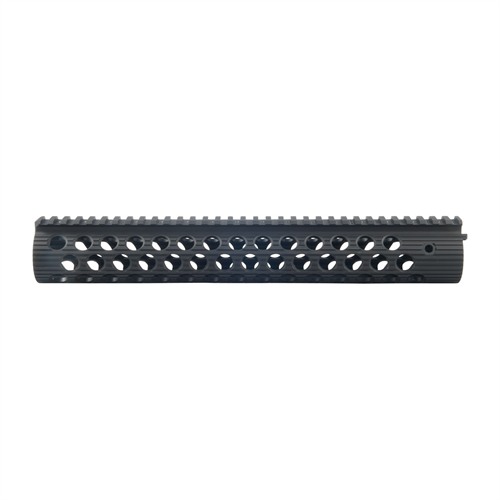

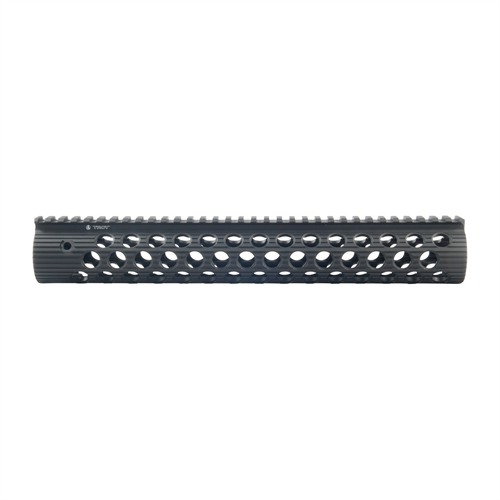

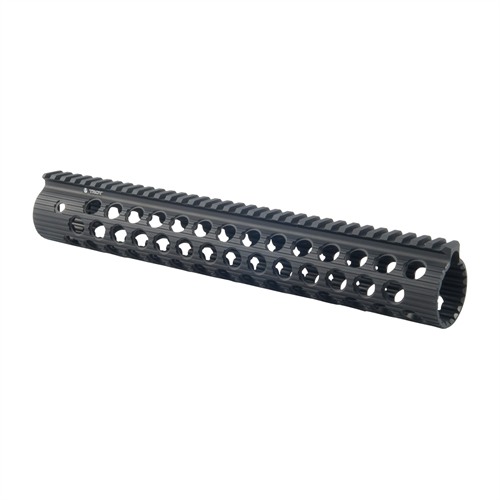

Machined aluminum free-float handguard employs a unique barrel nut and rotary-locking system to ensure proper alignment of top rail with receiver rail. Handguard slides over barrel and gas tube at an offset angle, until the notched barrel nut indexes in the internal grooved channel for a secure fit. Two hex head screws lock down the handguard, and a built-in stop prevents over tightening. Vent holes let heat escape the barrel and minimize weight. White alpha-numeric designators on the cross-slots ensure easy repeatability of accessory positions. Streamlined Alpha models have a single, top Picatinny rail, deep horizontal grooves for a secure no-slip grip, and additional ventilation holes to reduce weight and dissipate heat. Come with three bolt-on rails for mounting additional accessories exactly where you need them. Alpha models fit standard factory AR-15/M16 barrel nut.
SPECS: Machined 6061 T6 aluminum, hardcoat anodized, Teflon coated, matte black finish. Each model available lengths listed below. Mounting hardware and instructions included. Alpha fits AR-15/M16 rifles and carbines and attaches to the factory barrel nut.
Enkel å justere fri-flyt håndbeskyttere; Fast Quad-skinne & Bruker-konfigurerbare modeller
Maskinert aluminium fri-flyt håndbeskytter bruker en unik løpetapp og roterende låsesystem for å sikre riktig justering av toppskinnen med mottakerens skinne. Håndbeskytteren glir over løpet og gassrøret i en forskjøvet vinkel, inntil den noterte løpetappen indikerer i den interne sporene for en sikker passform. To sekskantede skruer låser håndbeskytteren, og en innebygd stopper forhindrer overstramming. Ventilasjonshull lar varmen slippe ut fra løpet og reduserer vekten. Hvite alfa-numeriske markører på tverrsporene sikrer enkel gjentakelse av tilbehørsposisjoner. Strømlinjeformede Alpha-modeller har en enkelt, topp Picatinny skinne, dype horisontale spor for et sikkert grep uten glid, og ekstra ventilasjonshull for å redusere vekt og spre varme. Kommer med tre bolte-skinner for montering av ekstra tilbehør akkurat der du trenger dem. Alpha-modeller passer standard fabrikk AR-15/M16 løpetapp.
SPECS: Maskinert 6061 T6 aluminium, hardcoat anodisert, Teflon-belagt, matt svart finish. Hver modell har tilgjengelige lengder oppført nedenfor. Monteringsutstyr og instruksjoner inkludert. Alpha passer AR-15/M16 rifler og karabiner og festes til fabrikkens løpetapp.
Top takeaways
Free-float håndbeskyttelse i maskinert aluminium med unik løpsmutter og roterende låsesystem for riktig justering.
Ventilasjonshull for varmeutslipp og vektminimering, samt alfa-numeriske betegnelser for enkel gjentakelse av tilbehørsposisjoner.
Leveres med tre bolt-on skinner for tilbehør, kompatibel med standard AR-15/M16 løpsmutter.
Attributes
Farge:Black
Length:13
Material:Aluminum
Style:Smooth
Type:Free Float
Våpentype:AR-15
Leveringsvekt:0,635kg
Frakthøyde:94mm
Fraktbredde:99mm
Fraktlengde:427mm
UPC:812699015346
Elementdetaljer
Made in USA
US eksport klassifisering: 0A501.y.1
Kundeanmeldelser
Kundevurderinger (10)
4,9 / 5
Anbefalt
New Quick Attach Rail Sections 29.10.2017
I must admit I am somewhat of a Troy Industries fan. I use their products extensively on many of my builds. However, I do have one criticism, I do not like the new attachment method for their Quick Attach Rail Sections. They utilize these tiny threaded tabs that are difficult to maneuver into position and slip around galling the inside of the forearm tube when tightening. I much prefer the older solid flat bar that was threaded in two locations to accept the clamping screws. I understand the desire to innovate but this is not an improvement.
I love the forearms but I'm not sure I want to use these anymore because of this.
Klart anbefalt
Great Rail 17.04.2015
This is a great handguard. It's easy to install, looks great, and is comfortable to hold.
Klart anbefalt
great rail. very light and works awesome 05.02.2014
I picked this rail because I loved being able to choose where I wanted to mount the rails. You save weight and can use and many or as few rails as you like.
Klart anbefalt
Best Price to Performance Option! 08.03.2013
Light is Right. And the Troy Alpha is among the lightest freefloat handguards with full single top rail. The diamiter is small, which combined with the love-it or hate-it Troy "cheese grater" ribbing and holes, provides a great gripping surface; wet or dry, gloved or bare handed. The 13" is great for the 16" and longer barrels. I'd suggest going 11" if you are running a pinned 14.5" barrel. While these handguards come with three attachable rail segments, I prefer not use them if I don't have to, due to weight. That is where the Noveseke accessories come in; their QD sling swival and sling stud attachments make for very low cost, low wieght and nearly zero space features for attaching a sling with a QD and a Harris biopod. Oh, while you're ordering accessories, check out the "Squid Grip"... LOVE THEM! Sure, if you have the BIG bucks, then the even slimer and lighter Noveseke NSR rails are great (if you can find them!), but for almost half the price of those, these are the value-leader BY FAR!
Highly Recommended!
Klart anbefalt
wow 09.01.2013
The product....amazing....beautiful.....I LOVE IT. The only things that you should make sure you have is a low profile gas block. I tried to mill down my stock one and it didn't work. A low pro is a must, just get one. Next, is the barrel nut. A $5 military surplus one will do just fine. Other than that, your set. If your "thinking" about buying this, don't think, BUY IT!
Klart anbefalt
This is the only handguard I use anymore 26.07.2012
The Troy Alpha hand guards are excellent. They're very light and very high quality.
The mounting system of this rail is ingenious. The three mounting bolts screw into three steel nuts that press against the barrel nut and center up the rail. The only way you could strip one is if you were trying to do it on purpose.
Klart anbefalt
Worth every penny! 09.07.2012
I installed one of these on a customer's M&P 15T. My customer wanted the lightest freefloat rail available - this is it! If you need to shed some weight and aren't in love with decorating your AR like an Xmas tree - less is more! The directions are a bit underwritten, however. They say to just cut off the Delta ring and install the Alpha Rail. I, for one, don't enjoy putting a cutoff on my Dremel and grinding on a new gun - I removed the BBL in the usual fashion, removed the Delta ring, reinstalled with a low profile gas block and attached the Troy Alpha Rail...done deal! This thing is rigid, light and adaptable with the included rail sections.
Klart anbefalt
Great forend! 21.06.2012
Used a 9" Alpha Rail on an AR-15 pistol with an 11" barrel. The fit and finish are fantastic. The hanguard indexes into position against the upper to provide a "near monolithic" upper configuration. Uninterrupted top rail is superb for positioning sight systems wherever you need them. Three bolt securing system locks the unit in place for a very solid feel. Add on rails provide flexibility for positioning lasers, lights, etc.
Klart anbefalt
Love this thing 15.06.2012
Replaced a MI 12" quad rail with this. It is lighter and much slimmer. The fact that I can configure it to my own needs is worth the price! Get the IWC micro flush QD sling mount while you are at it and don't look back.
Klart anbefalt
Best Rail on the Market 26.05.2012
This rail is the best I have ever used. Light weight, sturdy, slim and best of all uses a standard barrel nut. Troy got it right with this rail.
