081950006700 Selvstendig modul er klar til å installeres i din små-pin AR og levere et eksepsjonelt jevnt, skarpt, og uten oppspilling avtrekk som føles mer som en tradisjonell bolt-action enn en kampgevær trigger. 100% drop-in—ingen gunsmithing, tilpasning eller justering kreves. Alle komponenter er fanget i det lette, aluminiumlegeringshuset. Hammeren er wire-EDM bearbeidet fra S7 verktøystål som kombinerer hardhet for å motstå slitasje med overlegen støtmotstand for å tåle tung bruk uten flising eller brekk. Andre komponenter er EDM kuttet fra A2 verktøystål, deretter varmebehandlet til Rc 56-60 for lang levetid. Presisjonsbearbeidede kontaktflater sikrer enestående pålitelighet og en skarp, ren hammerutløsning. Installeres ved hjelp av rifleens originale hammer/trigger pinner; proprietær design eliminerer pin walkout. AR-.308 modellen har en fabrikkinnstilt 4 lb. avtrekksvekt, en solid sko, og mer hammermasse for å sikre positiv antennelse av hardere .308/7.62mm tennhetter.
På lager
Leveringstid ca. 14-21 dager. 5 stk. på lageret i USA
Leveringstid ca. 14-21 dager. 5 stk. på lageret i USA
Obtain A Super-Smooth Pull & Crisp Letoff In Minutes

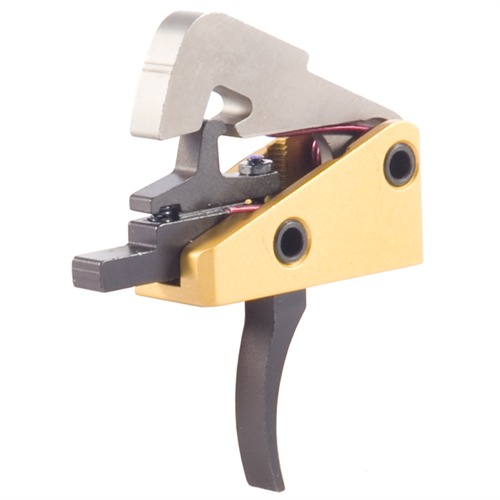

Self-contained module is ready to install in your small-pin AR and deliver an exceptionally smooth, crisp, creep-free single-stage trigger pull that feels more like a traditional bolt action than a combat rifle trigger. 100% drop-in—no gunsmithing, fitting, or adjusting required. All components are captive in the lightweight, aluminum alloy housing. Hammer is wire-EDM machined from S7 tool steel that combines hardness to resist wear with superior impact resistance to withstand heavy use without chipping or breaking. Other components are EDM cut from A2 tool steel, then heat treated to Rc 56-60 for long service life. Precision-ground engagement surfaces ensure superb reliability and a crisp, clean hammer release. Installs using your rifle’s original hammer/trigger pins; proprietary design eliminates pin walkout. AR-.308 model has a factory-set 4 lb. pull weight, a solid shoe, and more hammer mass to ensure positive ignition of harder .308/7.62mm primers.
SPECS: Hammer – S7 tool steel, natural color, Teflon-Nickel coated. Trigger/Internal Components - Hardened A2 tool steel, black oxide finish. Housing – 6061 T6 aluminum, gold anodized finish. Fits rifles with .154" diameter hammer/trigger pin holes. Will not fit Colt-manufactured AR-15s with sear block. AR-.308 – non-adjustable 4 lb. pull weight. Fits AR-style .308 rifles that accept small-pin AR-15 trigger components.
Oppnå en super-jevn avtrekk og skarp utløsning på minutter
Selvstendig modul er klar til å installeres i din små-pin AR og levere et eksepsjonelt jevnt, skarpt, og uten oppspilling avtrekk som føles mer som en tradisjonell bolt-action enn en kampgevær trigger. 100% drop-in—ingen gunsmithing, tilpasning eller justering kreves. Alle komponenter er fanget i det lette, aluminiumlegeringshuset. Hammeren er wire-EDM bearbeidet fra S7 verktøystål som kombinerer hardhet for å motstå slitasje med overlegen støtmotstand for å tåle tung bruk uten flising eller brekk. Andre komponenter er EDM kuttet fra A2 verktøystål, deretter varmebehandlet til Rc 56-60 for lang levetid. Presisjonsbearbeidede kontaktflater sikrer enestående pålitelighet og en skarp, ren hammerutløsning. Installeres ved hjelp av rifleens originale hammer/trigger pinner; proprietær design eliminerer pin walkout. AR-.308 modellen har en fabrikkinnstilt 4 lb. avtrekksvekt, en solid sko, og mer hammermasse for å sikre positiv antennelse av hardere .308/7.62mm tennhetter.
SPECS: Hammer – S7 verktøystål, naturlig farge, Teflon-Nikkel belagt. Trigger/Internal Components - Herdet A2 verktøystål, svart oksid finish. Hus – 6061 T6 aluminium, gull anodisert finish. Passer til rifler med .154" diameter hammer/trigger pin hull. Passer ikke til Colt-produserte AR-15 med sear blokk. AR-.308 – ikke-justerbar 4 lb. avtrekksvekt. Passer AR-stil .308 rifler som aksepterer små-pin AR-15 triggerkomponenter.
Top takeaways
Selvstendig modul klar til å installeres i små-pinne AR, gir en jevn, skarp enkeltrinns avtrekkerfølelse uten behov for børsemakerarbeid.
Komponenter inkludert i et lett aluminiumslegeringshus, med hammer laget av S7 verktøystål for holdbarhet og støtmotstand.
Passer AR-stil .308 rifler med en fabrikkinnstilt 4 lb. utløservikt og sikrer positiv tenning av hardere .308/7.62mm tennhetter.
Attributes
Style:Non-Adjustable
Våpentype:AR .308
Leveringsvekt:0,068kg
Frakthøyde:33mm
Fraktbredde:91mm
Fraktlengde:191mm
UPC:081950006700
Elementdetaljer
Made in USA
US eksport klassifisering: 0A501.c
Kundeanmeldelser
Kundevurderinger (12)
4,7 / 5
Klart anbefalt
Crisp - Zero Creep in a DPMS GII Lower 11.01.2016
No more creep. Light, repeatable release and feels like winding a Swiss watch while depressing the trigger. Trigger total movement is about 1/8"!
Instructions were spot on. Read them through first. One change would be to start the set screws before you drop it in. Just a turn. Too much and the pins won't go back in. After you have the assembly in position it's a bit of a chore to get them started because of the springs. Use grease in the socket to hold the screws to the wrench.
I put this in a new DPMS Gen II lower. Fits like a glove. The GII lower is different than the GI (LR-308) but rest assured it fits perfectly.
The hammer is bigger than the GII OEM hammer. The whole thing is a piece of art. High quality metal and finish.
Worth the money.
Klart anbefalt
Nothing Not To Like 23.06.2015
My first experience with Timney triggers was one I bought for my 10/22. Total drop in, great fit, great trigger. So I got this one for my DPMS style .308 AR build and it is everything I expected. Two triggers purchased, two great feeling triggers; do I detect a pattern?
Iâve purchased stripped AR lowers and built them up. With the last one I purchased a Ni Boron set and that was the best AR trigger Iâd tried. Iâm mentioning this to point out that I *DO* know how to install Mil Spec triggers and know what a good one feels like. Since I wanted a rifle that would be as accurate as possible I decided to actually put some money into this trigger. I could have gone with other manufacturers but while I do know how to install the fire control group I can get a bit lazy from time to time. So I looked into drop in triggers.
I wanted a trigger that was light enough to not impact my accuracy too much (Iâve got enough problems as is) but was heavy enough that I wouldnât worry about safety out in the field. Timneyâs 4 pound trigger seems to fit the bill. I followed the directions and installation was a snap. I saw one review complaining about the pins falling out. I had to laugh as the directions said to put a piece of tape over the pins until installation was complete. Once youâve tightened down the set screws to apply pressure to the pins (the last step) you can remove the tape and the pins are as tight as you could possibly want.
Iâve tried custom worked triggers on other guns at the range (not my guns but ones belonging to someone else) and while they might be a bit lighter I donât think that they break any crisper or have any less creep (i.e. none).
Any time I want an accurate trigger that is easy to install Iâm going to go with Timney for sure.
Anbefalt
Phoned in. 25.03.2015
4 lb pull is too heavy, I don't know why Timney made it so heavy. 3lb would have been perfect. They make a good trigger, but I think they have been resting on their laurels.
Klart anbefalt
Great AR upgrade. 02.01.2015
Easy install in my Bushmaster. Crisp trigger that took the long, hard, gritty pull out of my AR 10. I will buy another one for my 5.56. Can't wait to see how it performs at the range.
Klart anbefalt
Excellent! 15.01.2014
Installed in a Ruger SR762 in minutes, per instructions. Would recommend watching You Tube related video. Went from factory 10.75 lb drag and creep to a crisp 4.0 lb trigger.
Klart anbefalt
I want to rate this trigger 10 stars! 02.06.2012
Unquestionably the best upgrade/modification to my DPMS ar-15! Accuracy much improved from stock trigger. Easy install too. There are two retaining hex screws under the end length of the hammer spring that can be tricky. After studying the trigger & install instructions I took the ends of the hammer spring partially blocking the retainer hex screws & lifted both ends crossing them to the middle over each other. This cleared the area for installing the hex retaining screws. After both hex screws were installed, the hammer spring ends were uncrossed and fell back into their original place. The 4 lbs pull was unchanged by the prying up & crossing of the spring ends. Excellent trigger! Well worth the $$
Klart anbefalt
GREAT TRIGGER!!! Hard to install 11.01.2012
I have built many AR's and have done many trigger Jobs for customers and friends, but this trigger is GOLD right out of the box. IT is very difficult to install, not impossible, but not easy by ones self. making sure the trigger pins stay seated as you tighten the two allens can be frustrating but it is well worth it in the end. My trigger feels about 3 pounds at the most.... no creep, exactly what I expect from a [$] trigger.
Klart anbefalt
Wow, what a difference! 30.12.2011
I recommend this trigger. The pull is consistent and the break is very clean. If you own a stock DPMS LR-308 with a factory trigger that takes FOREVER to break, you will not be disappointed with this purchase. I installed it myself after I watched a couple of videos as well as going to Timney's website and viewing the installation presentation. On a side note, if you are not mechanically inclined, have a friend install it who is.
Klart anbefalt
Make em Jealous. 15.09.2011
I installed this trigger in my SASS build project. Took the rifle to the gon shop because of an unrelated issue. The people at the shop fell in love with the trigger just like I did. In fact one of the gunsmiths had a SASS and the first thing out of his mouth is "man, im jealous of that trigger." Its smooth and exact. Im going to install a Timney in my Remington Woodsmaster if they make one.
Klart anbefalt
Best thing I have added to my AR Varmint 24.05.2011
I have built several AR's over the past several years, but always stoned the triggers and added lighter springs to get a better trigger pull. I wanted a 'drop in unit', and having had great results with other "Timmney" Triggers, went with this unit. This trigger is amazing compared to any other trigger I have used in a AR. As for the two screws that had to be installed, I spet maybe a full sixty seconds getting both in and tight. No problem!!
Anbefalt
AR-.308 Trigger Module, Solid Shoe 19.07.2010
Installed mine quite easily. Instructions are adequate but could be improved and Timney has techs available to assist/answer questions. There might be a small amount of creap in mine but if so, I see it as a good thing for this application.
Anbefalt med reservasjoner
Nothing to Write Home About 02.07.2010
This trigger is difficult to install. There are two tiny allen head lock screws that must be manuvered into place next to the hammer springs. Very hard to do without three hands. Performance is only so-so after installation. No take up or slop but it seems to be set at about 8 pounds. Better than the stock trigger to be sure but not worth the money. Timney usually does a better job on their triggers.
