REDMANS

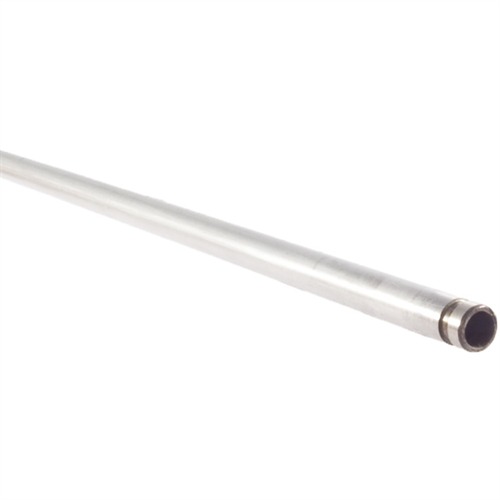

22 CALIBER RIMFIRE BARREL LINERS

770100216

Easily & Professionally Reline Rimfire Rifle Barrels In Your Shop with the Redman Rimfire Barrel Liners.

There are untold thousands of rimfire .22’s over the country today that need only a barrel liner to bring them back to their original shooting abilities. Some of these guns are beautiful collection pieces, others are fine hunting guns and some of them are just “loved” by their owners who want them back to their original condition. Redman 22 Barrel Liners are button rifled with ultra smooth, uniform finish and sharp, distinct rifling for superb accuracy that’s better than - or equal to - an original, new barrel. The instruction booklet gives complete, easy-to-follow details for either the old, classic method of soldering the liners in or, the more modern method of using ACRAGLAS® for the permanent bond between barrel and liner. Barrel Liner Instruction Book details the systems used by gunsmiths Bob Schuetz, Willis Sprunger and Ralph Walker. Walker used a variable speed hand drill and ACRAGLAS to hold the liner in. Schuetz solders the liner in place. Sprunger extended a regular bit, drilled the hole in a lathe and bonded with ACRAGLAS. WARNING: These Redman gun barrel liners are made for specific cartridges. Only use with specified cartridges listed in item description. To chamber these gun barrel liners in other calibers is dangerous and can cause serious bodily injury.

SPECS: 4140 steel. .223" (5.6mm) groove diameter for .22 Short and Long Rifle (LR), 1-16 twist (LR) or 1-20 twist for Short. 5/16" (7.9mm) O.D., 25" Liner - 26-3/8" (67cm) overall, 25" (63.5cm) usable length. 32" Liner - 32" (81.2cm) overall, 30-5/8" (77.7cm) usable length. Not chambered.

Mer...

Enkelt & Profesjonelt Omløp Randtente Rifleløp i Din Butikk med Redman Randtent Løpsliner.

Det finnes utallige .22 randtente rifler over hele landet i dag som kun trenger en løpsliner for å gjenopprette deres opprinnelige skyteegenskaper. Noen av disse geværene er vakre samlerstykker, andre er fine jaktvåpen og noen av dem er rett og slett "elsket" av eierne som ønsker dem tilbake til deres opprinnelige tilstand. Redman 22 Barrel Liners er knapp-riflet med en ultra glatt, jevn finish og skarp, distinkt rifling for enestående nøyaktighet som er bedre enn - eller lik - et originalt, nytt løp. Instruksjonsheftet gir komplette, lettfattelige detaljer for enten den gamle, klassiske metoden for å lodde linerne på plass, eller den mer moderne metoden for å bruke ACRAGLAS® for et permanent bånd mellom løp og liner. Barrel Liner Instruction Book detaljerer systemene brukt av børsemakere Bob Schuetz, Willis Sprunger og Ralph Walker. Walker brukte en variabel hastighet håndboremaskin og ACRAGLAS for å holde linerne på plass. Schuetz lodder linerne fast. Sprunger forlenget et vanlig bor, boret hullet på en dreiebenk og festet med ACRAGLAS. ADVARSEL: Disse Redman geværløpslinerne er laget for spesifikke patroner. Bruk kun med spesifiserte patroner nevnt i produktbeskrivelsen. Å kamre disse geværløpslinerne i andre kaliber er farlig og kan forårsake alvorlig personskade.

SPECS: 4140 stål. .223" (5.6mm) sporvidde for .22 Short og Long Rifle (LR), 1-16 twist (LR) eller 1-20 twist for Short. 5/16" (7.9mm) O.D., 25" Liner - 26-3/8" (67cm) total lengde, 25" (63.5cm) brukbar lengde. 32" Liner - 32" (81.2cm) total lengde, 30-5/8" (77.7cm) brukbar lengde. Ikke kamret.

Mer...

Kundevurderinger for REDMANS 1-16 TWIST 32" 22 LONG RIFLE LINER

Antall vurderinger: 8
Fra brownells.com: 8
Gjennomsnittsvurdering: 4,8

.22 bar bells (17.06.2008)

Good stuff

Restoring life to an old .22 rifle (17.07.2011)

I've used these Redman barrel liners for years and have relined dozens of shot out .22 barrels using this product. I've found the liners to be of very good quality and their specs have never varied. I've used ACRAGRLAS to install the liners without a problem. Customers have been universally pleased with the restoration work and the resulting accuracy of the relined barrel. Highly recommend this product.

Great product (17.12.2011)

My piece was 0.3100".

I needed to fit a very small piece.
I used a .309" reamer and wallered around.
I then glued it in place with Loc-tite 601.

WONDERFUL product (20.12.2013)

This liner took a Remington Model 12C with a rusted, pitted and useless barrel and turned it into a fine shooter again.

Sometimes it's the only option... (23.08.2015)

...and it works VERY well. Surprisingly easy to drill for and to install. Makes a 100+ year-old gun shoot like new...

custom ruger mk barrel (26.02.2017)

used this liner inside a machined hand made barrel t6061 alum.on a ruger mark pistol....shoots very small groups...will use again...

Tips For The Professional (14.04.2017)

NOTE: these tips are for the Professional Gunsmith and persons who are properly trained on chambering and operating a lathe; and are meant to be in addition to following the Brownells instruction manual.

1. Evaluate Firearm - budget 6 to 8 hours for disassembly, setup in lathe to drill both ends, detailed cleaning of other parts, final fitting and assembly. It can be a long process to do properly, so charge accordingly. Be sure to clean, evaluate and repair as needed before starting this process.

2. 4 Jaw Chuck - be very careful not to damage the barrel's finish with the chuck or spider, as most older barrels are made of softer then expected metal. I used a 5/16 bottom cutting end-mill to start the hole at the breach because the extractor cut interfered with the pilot drill.

3. Starter Chamber - if you are capable of cutting a new chamber, I would strongly recommend cutting off the starter chamber and reaming a fresh one, as the one cut in my liner was so rough that it almost wasn't recoverable; and I didn't realize it until after it was epoxied in.

4. Securing Liner - after thoroughly degreasing the barrel, lightly scuffing and cutting shallow groves in both ends of the liner, I secured it in place using 262 RED Loctite, and it worked great! Just be sure to use rubber plugs to help keep it out of the new barrel; makes cleanup easer, and helps keep the epoxy where it belongs.

This worked great. (03.05.2018)

This worked great in an old High Standard pistol. The pistol is very accurate after the reclining. Pretty easy to use, but I have a lathe. Note that you need to cut the chamber after installation.

Les 8 flere anmeldelser fra brownells.com

3049 3049 1 NOK

Produktnr.: 770100216
REDMANS 1-16 TWIST 32" 22 LONG RIFLE LINER
Produsentnr.: NONE Det finnes utallige .22 randtente rifler over hele landet i dag som kun trenger en løpsliner for å gjenopprette deres opprinnelige skyteegenskaper. Noen av disse geværene er vakre samlerstykker, andre er fine jaktvåpen og noen av dem er rett og slett "elsket" av eierne som ønsker dem tilbake til deres opprinnelige tilstand. Redman 22 Barrel Liners er knapp-riflet med en ultra glatt, jevn finish og skarp, distinkt rifling for enestående nøyaktighet som er bedre enn - eller lik - et originalt, nytt løp. Instruksjonsheftet gir komplette, lettfattelige detaljer for enten den gamle, klassiske metoden for å lodde linerne på plass, eller den mer moderne metoden for å bruke ACRAGLAS® for et permanent bånd mellom løp og liner. Barrel Liner Instruction Book detaljerer systemene brukt av børsemakere Bob Schuetz, Willis Sprunger og Ralph Walker. Walker brukte en variabel hastighet håndboremaskin og ACRAGLAS for å holde linerne på plass. Schuetz lodder linerne fast. Sprunger forlenget et vanlig bor, boret hullet på en dreiebenk og festet med ACRAGLAS. ADVARSEL: Disse Redman geværløpslinerne er laget for spesifikke patroner. Bruk kun med spesifiserte patroner nevnt i produktbeskrivelsen. Å kamre disse geværløpslinerne i andre kaliber er farlig og kan forårsake alvorlig personskade.

3049 NOK 58 kr 3 049,00 *

Leveringstid ca. 14-21 dager.
Mer enn 10 stk. på lager i USA

Spesifikasjoner: Kaliber: 22 Long Rifle

Legg til ønskeliste

Still spørsmål

Detaljer

Legg til ønskeliste

Still spørsmål

Top takeaways

Redman 22 Barrel Liners tilbyr en ultra glatt finish og skarp rifling for enestående nøyaktighet, bedre enn eller lik et originalt løp.
Instruksjonsheftet beskriver både klassiske og moderne metoder for å feste løpslineren, inkludert bruk av ACRAGLAS® for et permanent bånd.
Advarsel: Disse løpslinerne er laget for spesifikke patroner og skal kun brukes med de spesifiserte patronene for å unngå alvorlig personskade.

Attributes

Cartridge: 22 Long Rifle Leveringsvekt: 0,166kg Frakthøyde: 25mm Fraktbredde: 28mm Fraktlengde: 686mm

Elementdetaljer

Made in USA
US eksport klassifisering: 0A501.c

Gjenopprett skyteegenskapene til din .22 rifle med Redmans 22 Caliber Barrel Liners! 🎯 Høy presisjon og enkel installasjon for alle eiere.

Easily & Professionally Reline Rimfire Rifle Barrels In Your Shop with the Redman Rimfire Barrel Liners.

Mer...

Enkelt & Profesjonelt Omløp Randtente Rifleløp i Din Butikk med Redman Randtent Løpsliner.

Mer...

Kundevurderinger for REDMANS 1-16 TWIST 32" 22 LONG RIFLE LINER

Antall vurderinger: 8
Fra brownells.com: 8
Gjennomsnittsvurdering: 4,8

.22 bar bells (17.06.2008)

Good stuff

Restoring life to an old .22 rifle (17.07.2011)

Great product (17.12.2011)

My piece was 0.3100".

I needed to fit a very small piece.
I used a .309" reamer and wallered around.
I then glued it in place with Loc-tite 601.

WONDERFUL product (20.12.2013)

This liner took a Remington Model 12C with a rusted, pitted and useless barrel and turned it into a fine shooter again.

Sometimes it's the only option... (23.08.2015)

...and it works VERY well. Surprisingly easy to drill for and to install. Makes a 100+ year-old gun shoot like new...

custom ruger mk barrel (26.02.2017)

used this liner inside a machined hand made barrel t6061 alum.on a ruger mark pistol....shoots very small groups...will use again...

Tips For The Professional (14.04.2017)

This worked great. (03.05.2018)

This worked great in an old High Standard pistol. The pistol is very accurate after the reclining. Pretty easy to use, but I have a lathe. Note that you need to cut the chamber after installation.

Les 8 flere anmeldelser fra brownells.com
